Sharp Apps

Sharp Apps are a new approach to dramatically simplify .NET Wep App development and provide the most productive development experience possible whilst maximizing reuse and component sharing. They also open up a number of new use-cases for maintaining clean isolation between front-end and back-end development with front-end developers not needing any knowledge of C#/.NET to be able to develop UIs for high-performance .NET Web Apps. Sharp Apps also make it easy to establish and share an approved suite of functionality amongst multiple websites all consuming the same back-end systems and data stores.

Sharp Apps leverages #Script to develop entire content-rich, data-driven websites without needing to write any C#, compile projects or manually refresh pages - resulting in the easiest and fastest way to develop Web Apps in .NET!

Ultimate Simplicity

Not having to write any C# code or perform any app builds dramatically reduces the cognitive overhead and conceptual knowledge required for development where the only thing front-end Web developers need to know is #Script's familiar syntax and what methods are available to call. Because of #Script's JavaScript compatibility, developing a Website with #Script will be instantly familiar to JavaScript devs despite calling and binding directly to .NET APIs behind the scenes.

All complexity with C#, .NET, namespaces, references, .dlls, strong naming, packages, MVC, Razor, build tools, IDE environments, etc has been eliminated leaving all Web Developers needing to do is run the cross-platform x dotnet tool and configure a simple app.settings text file to specify which website folder to use, which ServiceStack features to enable, which db or redis providers to connect to, etc. Not needing to build also greatly simplifies deployments where multiple websites can be deployed with a single rsync or xcopy command or if deploying your App in a Docker Container, you just need to copy your website files, or just the app.settings if you're using an S3 or Azure Virtual File System.

Rapid Development Workflow

The iterative development experience is also unparalleled for a .NET App, no compilation is required so you can just leave the x dotnet tool running whilst you add .html files needed to build your App and thanks to the built-in Hot Reloading support, pages will refresh automatically as you save. You'll just need to do a full page refresh when modifying external .css/.js files to bypass the browser cache and you'll need to restart x to pick up any changes to your app.settings or added any .dlls to your /plugins folder.

FREE!

To remove friction & barriers to adoption all app and x dotnet tools used to run all Sharp and Gist Desktop Apps utilize an unrestricted suite of ServiceStack Software that can be developed & distributed free without a commercial license.

Should it be needed if exceeding free-quotas (most Sharp Apps don't) when developing locally as a .NET Core Web App (i.e. instead of running using the app tool), you can bypass any restrictions with a Trial License Key.

Getting Started

All Sharp Apps can be run either as .NET Core Web Apps by installing the x dotnet tool:

$ dotnet tool install -g x

$ x open

By default this will list all sharp-apps available:

 1. redis       Simple, lightweight, versatile Redis Admin UI
 2. spirals     Explore and generate different Spirals with SVG
 3. blog        Minimal, multi-user Twitter Auth blogging app
 4. rockwind    Example combining Rockstars website + data-driven Northwind Browser
 5. redis-html  Redis Admin Viewer developed as server-generated HTML Website
 6. plugins     Extend Apps with Plugins, ServiceStack Services and other C# extensions
 7. chat        Extensible App with custom AppHost leveraging OAuth + SSE for real-time Chat
 8. bare        Basic Sharp Content Website
 9. studio      Admin UI for managing ServiceStack Instances (v5.9+)
10. sharpdata   Instant UI for browsing multiple RDBMS's
11. win32       Demo Desktop App showcasing Win32 APIs

Usage: x open <name>

Where any of the apps can be installed by specifying the name, e.g. spirals can be run with:

$ x open spirals

Which will run the latest version of the spirals App each time. After an App has been run once or installed, you can run its local version with x run:

$ x run spirals

Windows 64 Desktop App

Each Sharp App can also be run as a .NET Core Windows Desktop App by installing the app dotnet tool:

$ dotnet tool install -g app

Then running the Web App with app instead of x.

$ app open spirals

Spirals

Spirals is a good example showing how easy it is to create .NET Core Desktop Web Apps utilizing HTML5's familiar and simple development model to leverage advanced Web Technologies like SVG in a fun, interactive and live development experience.

YouTube: youtu.be/2FFRLxs7orU

See the Making of Spirals for a walk through on how to create the Spirals Web App from scratch.

Sharp App

The easiest way to create an empty Sharp App is to run app init from an Empty App Directory:

$ md Acme && cd Acme && web init

Which will create an empty Sharp App as seen in the Spirals video above:

SharpApp Project Templates

A more complete starting option is to start from one of the project templates below. All project templates can be installed using the x new tool, which if not already can be installed with:

$ dotnet tool install --global x

Vue Desktop

The most versatile project template is the Vue Desktop Template which is capable of building a standard vue-lite .NET Core Web App that can also be bundled into a single GitHub Gist and run as a Gist Desktop App:

To run Chromium Desktop Apps install the app tool:

$ dotnet tool install -g app

This has all the same features of the x tool where you can create new projects with:

$ app new vue-desktop ProjectName

Then after packaging the Web App into a Sharp App with:

$ npm run pack-app

You can run it as a Desktop App by running the app tool in the dist folder:

$ cd dist && app

Bare SharpApp

To start with a simple and minimal website, create a new bare-app project template:

$ x new bare-app ProjectName

This creates a multi-page Bootstrap Website with Menu navigation that's ideal for content-heavy Websites.

Parcel SharpApp

For more sophisticated JavaScript Sharp Apps we recommended starting with the parcel-app project template:

$ x new parcel-app ProjectName

This provides a simple and powerful starting template for developing modern JavaScript .NET Core Sharp Apps utilizing the zero-configuration Parcel bundler to enable a rapid development workflow with access to best-of-class web technologies like TypeScript that's managed by pre-configured npm scripts to handle its entire dev workflow.

If needed, it includes an optional server component containing any C# extensions needed that's automatically built and deployed to the app's /plugins folder when started. This enables an extensible .NET Core Web App with an integrated Parcel bundler to enable building sophisticated JavaScript Apps out-of-the-box within a live development environment.

Cloud Apps Starter Projects

If you intend to deploy your Web App on AWS or Azure you may prefer to start with one of the example Cloud Apps below which come pre-configured with deployment scripts for deploying with Travis CI and Docker:

• rockwind-aws
• rockwind-azure

About Bare WebApp

The Getting Started project contains a copy of the bare-app.web-templates.io project below which is representative of a typical Company splash Website:

The benefits over using a static website is improved maintenance as you can extract and use its common _layout.html instead of having it duplicated in each page. The menu.html partial also makes menu items easier to maintain by just adding an entry in the JavaScript object literal. The dynamic menu also takes care of highlighting the active menu item.

{{ { '/':         'Home',
     '/about':    'About',
     '/services': 'Services',
     '/contact':  'Contact',
   } |> toList |> to => links }}

Ideal for Web Designers and Content Authors

The other primary benefit is that this is an example of a website that can be maintained by employees who don't have any programming experience as #Script in their basic form are intuitive and approachable to non-developers, e.g: The title of each page is maintained as metadata HTML comments:

<!--
title: About Us
-->

#Script syntax is also the ideal way to convey variable substitution, e.g: <title>{{ title }}</title> and even embedding a partial reads like english {{ 'menu' |> partial }} which is both intuitive and works well with GUI HTML designers.

app.settings

Below is the app.settings for a Basic App:

debug true
name Bare Sharp App

debug true controls the level of internal diagnostics available and whether or not Hot Reloading is enabled.

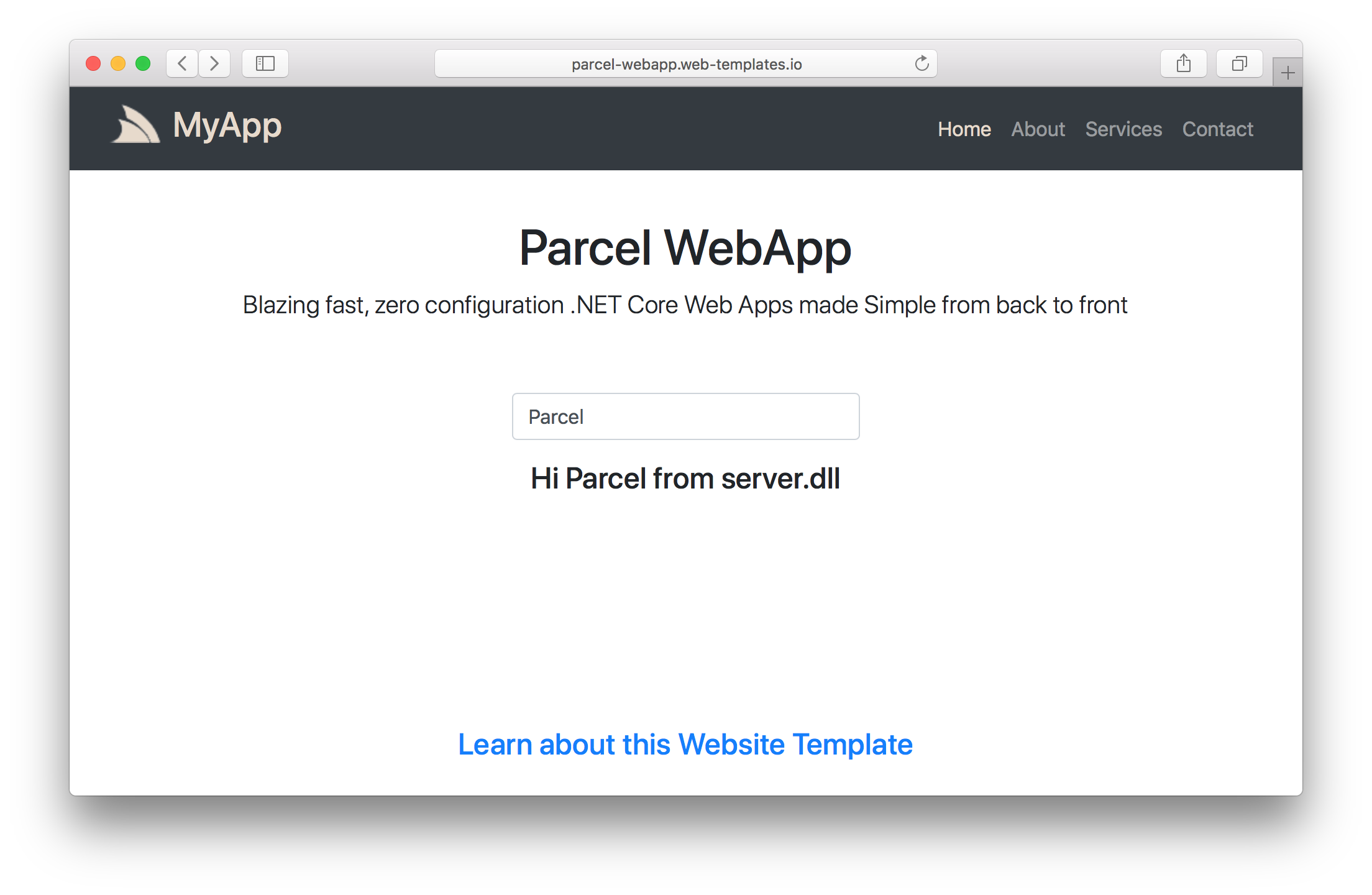

About Parcel WebApp

$ npm install -g parcel-bundler

$ npm run dev

$ npm run server

public class ServerPlugin : IPlugin
{
    public void Register(IAppHost appHost)
    {
    }
}

//[Route("/hello/{Name}")] // Handled by /hello/_name.html API page, uncomment to take over
public class Hello : IReturn<HelloResponse>
{
    public string Name { get; set; }
}

public class HelloResponse
{
    public string Result { get; set; }
}

public class MyServices : Service
{
    public object Any(Hello request)
    {
        return new HelloResponse { Result = $"Hi {request.Name} from server.dll" };
    }
}

$ npm run server

$ npm run dtos

{{ { result: `Hi ${name} from /hello/_name.html` } |> return }}

import { client } from "./shared";
import { Hello, HelloResponse } from "./dtos";

const result = document.querySelector("#result")!;

document.querySelector("#Name")!.addEventListener("input", async e => {
  const value = (e.target as HTMLInputElement).value;
  if (value != "") {
    const request = new Hello();
    request.name = value;
    const response = await client.get(request);
    // const response = await client.get<HelloResponse>(`/hello/${request.name}`); //call /hello/_name.html
    result.innerHTML = response.result;
  } else {
    result.innerHTML = "";
  }
});

$ npm run build

Reference

All common functionality contained in Sharp Apps are implemented in the dotnet tools, most of which is contained within these 2 classes (for all dotnet tools):

• Startup.cs
• Startup.Mix.cs

The app dotnet tool contains additional Chromium Desktop related features in its /src/App project.

app.settings options

These different options are covered in the various example Sharp Apps, e.g:

• DB settings
• Redis settings
• Virtual File System (VFS) settings
• Configuring Plugins
• Using a Custom AppHost
• Passing Rich Config Arguments to your App

Plugins.Add(new DesktopFeature {
    // access role for Script, File & Download services
    AccessRole = Config.DebugMode
        ? RoleNames.AllowAnon
        : RoleNames.Admin,
    ImportParams = { // app.settings you want auto-populated in your App
        "debug",
        "connect",
    },
    // Create a URL Scheme proxy rule for each registered site
    ProxyConfigs = sites.Keys.Map(baseUrl => new Uri(baseUrl))
        .Map(uri => new ProxyConfig {
            Scheme = uri.Scheme,
            TargetScheme = uri.Scheme,
            Domain = uri.Host,
            AllowCors = true,
            IgnoreHeaders = { "X-Frame-Options", "Content-Security-Policy" },
        })
});
